6.95"(17.6cm) Media Receiver with WebLink Cast
6.95"(17.6cm) Media Receiver with WebLink Cast 0
6.95"(17.6cm) Media Receiver with WebLink Cast 1
6.95"(17.6cm) Media Receiver with WebLink Cast 2
6.95"(17.6cm) Media Receiver with WebLink Cast 3
6.95"(17.6cm) Media Receiver with WebLink Cast 4
6.95"(17.6cm) Media Receiver with WebLink Cast 5

6.95"(17.6cm) Media Receiver with WebLink Cast

Model #: XAV-AX3200
At a Glance
Enjoy smartphone connectivity including screen mirroring with WebLink™1. An anti-glare 6.95" (17.6cm) diagonal touchscreen wakes up right after turning on the ignition2 and gives you intuitive control over music, communications, and more. Newly added A/V connectivity allows you to hook up an external audio or visual source device.
$349.99Save $NaN
You Might Also Need

Protection Plans

Square Trade by Allstate Protection Plan 2 Year Parts & Labor Warranty $300 - $399.99


x 1

Square Trade by Allstate Protection Plan 4 Year Parts & Labor Warranty $300 - $399.99


x 1

Get to know this product.

  • Mirror and control selected smartphone apps with WebLink™ Cast
  • Anti-glare touchscreen with quick boot
  • EXTRA BASS™ adds low-end power
  • A/V input for an external audio and visual source device
  • Rear-view camera ready for safe reversing

Use with your phone

WebLink™ Cast Compatible

WebLink™ is a lightweight app delivery platform designed especially for in-vehicle use. Using the Android or iOS device connection, it is now possible to mirror your smartphone screen right on the car audio display – for reliable, responsive infotainment anytime on the road.

Bezel-less capacitive touchscreen

Bring up maps, sort through playlists, and make phone calls – all from a smooth, bezel-less display that integrates seamlessly with your dashboard. The 6.95" diagonal (17.6cm) capacitive touchscreen ensures everything is simple and easy to use.

Simple button controls

Get instant access to commonly-used features such as volume, source, sound settings and voice control for safe and easy operation on the road.

Dual USB for phone connection and music library

Thanks to dual USB ports, you can hook up storage devices to access your music library, while your phone handles directions and phone calls.

Hear music your way

Multiple customization options let you adapt the audio experience to your liking. And with the built-in 4 x 55 W amplification, music sounds clear even at high volumes.

Powerful, clear amplification

Advanced signal processing from the 4 x 55 W Dynamic Reality Amp 2 removes interference, so music sounds clear and detailed, even when you crank up the volume.

Music that jumps from your dashboard

Sound waves are directional, so if your speakers are in your doors or under your dash, the audio may seem muddy or unclear. Dynamic Stage Organizer adjusts the signal, improving the stereo positioning so music sounds like it’s coming from the dashboard.

Sculpt your sound

Tailor the sound to your personal preference with the 10-band graphic equalizer.

Build your own sound system

The three 5-volt pre-outs ensure a strong signal for external power amps, delivering clear sound and minimal signal interference.

Quick Wake-up

With the Quick Wake-up feature, you’re ready to go right after turning on the ignition

Rear-view camera ready

Have a rear camera installed? Then you can view its feed through the screen, along with customizable guidelines to help you reverse safely.

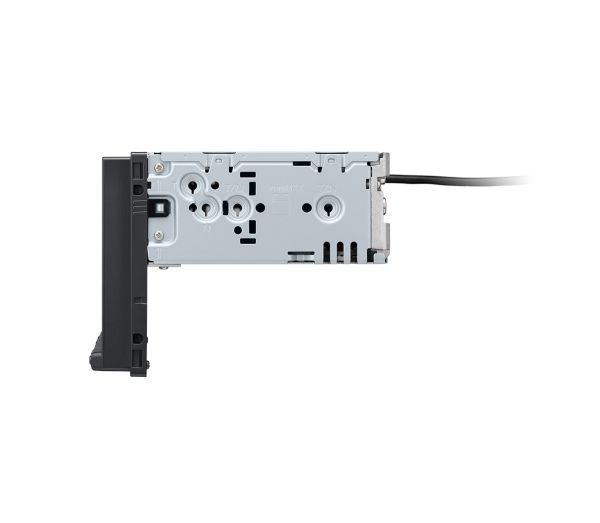

Easy installation with a compact rear chassis

Despite its double-DIN display, the rear chassis is far smaller than conventional double-DIN units. This makes for much easier installation, and leaves plenty of room for cabling and other accessories in the space behind the display.

Bluetooth® Wireless Technology

Make hands-free calls and stream wireless audio from your smartphone, with Bluetooth®.

FLAC Compatible

FLAC compatibility lets you play lossless audio files, so you enjoy every detail of the music.

Sirius XM Radio Ready

Connect your Sirius XM Radio satellite tuner (not supplied) to enjoy commercial-free music, sport, news and entertainment.

Useful Documents

Bluetooth Audio Features

Audio Codec (Bluetooth Audio)SBC / AAC
Audio Level AdjustmentYes (-6 dB to +6 dB)
Cue / RevYes
Group (Folder) +/-Yes
Meta Data IndicationYes
Pause (Bluetooth Audio)Yes
Repeat Control (Audio Device side)Yes
Shuffle Control (Audio Device side)Yes
Track +/-Yes

Bluetooth Features

Alphabetical Phonebook SortingYes
Call Volume Level ControlYes
External MicrophoneSupplied
Last Dialed CallYES (select from the dialed call history)
Phone Battery Level ReminderYes
Phonebook Access via PBAPYes
Recent Calls (# of)Yes
Ring Volume Level ControlYes
Signal Strength IndicationYes
Speed DialYes (6 memories)

Bluetooth Profile

A2DPYes (1.3)
AVRCPYes (1.3)
HFP 1.5Yes (1.6)
PBAPYes (1.1)



Display Panel

Dimmer AdjustYes
Key IlluminationYes (White)

General Features

DSO (Dynamic Stage Organizer)Yes
EXTRA BASSYes (Off/1/2)
Equalizer10-band Graphic Equalizer
Firmware upgradabilityYes
Output Power55 W x4
Pre Out3 Pre (Front/Rear/Sub x 1)
Rear View Camera inYes
USBYes (Rear x2)


Brightness500 cd/m2
Contrast Ratio400
LCD TypeTFT Active Matrix
Resolution (DOT)800 x 480
Screen Aspect17: 9
Screen Diagonal (inch / mm)6.95 inch
Screen Size (W x H mm)156.6 x 81.6 (mm)


CautionEnglish/Spanish/French/German/Italian/Russian/Portuguese/Thai/Simplified Chinese/Traditional Chinese/Korean/Arabic/Indonesian
ID3 TagEnglish/Spanish/French/German/Italian/Russian/Portuguese/Thai/Simplified Chinese/Traditional Chinese/Korean/Arabic/Indonesian
MenuEnglish/Spanish/French/German/Italian/Russian/Portuguese/Thai/Simplified Chinese/Traditional Chinese/Korean/Arabic/Indonesian

Panel Design

Key IlluminationYes (White)
Panel Surface Finish ColorBlack

Size & Weight

Dimensions (W x H x D)7.01 x 3.94 x 5.47 inches
Weight2.20 lb

Tuner Features

Auto MemoryBTM
PresetFM18 / AM12

USB Mass Storage Device Control Feature

USB Device Control (Audio Codec)USB1: PCM / MP3 / WMA / AAC / FLAC, USB2: MP3 / WMA / FLAC
USB Device Control (Pause)Yes
USB Device Control (Repeat)TRACK / FOLDER / DRIVE
USB Device Control (Resume Play)Yes
USB Device Control (Shuffle)OFF / FOLDER / DEVICE
USB Device Control (Video Codec)Only USB1: MPEG4-SP / AVC (H.264 Baseline) / WMV / MKV / XviD
USB device control (audio playable file extension)USB1: .wav / .mp3 / .wma / .m4a / .flac, USB2: .mp3 / .wma / .flac
USB device control (video playable file extension)Only USB1: .mp4 / .wmv / .mkv

User Interface

Aspect Ratio SelectYes
Gesture CommandYes
Parking ControlYes
Parking Line AdjustYes
Rear View Camera-In Marker SettingYes
Remote CommanderRM-X170
Touch PanelYes/Capacitive

Misc. Specs

Product Weight (lbs.)2.20
Number of USB Ports2
Bluetooth CapableYes
Android CapableYes
Manufacturer Warranty3 Years Limited
Width (in.)7.01
Depth (in.)5.47
Height (in.)3.94
Screen Size (Measured Diagonally) (in.)6.95
Compatible DevicesAndroid/iOS
Satellite Radio ReadyYes
Carplay CapableYes
Voice ActivatedYes
Color Finish NameBlack
WarningProposition 65 Warning for California Residents
