Description
4-Channel Class D Full-Range Amplifier, 150 W x 4 @ 1.5-4 O
This compact multi-channel powerhouse employs our Single-Cycle Control switching design and R.I.P.S. technology to deliver 150 W x 4 or 300 W x 2. Tight power supply regulation keeps distortion down and maximizes sound quality.
When using the HD750/1 or HD1200/1 to drive a subwoofer system, the HD600/4 is the ideal satellite amplifier, delivering huge dynamics with pristine resolution. From a pure sound quality perspective, we invite you to compare the real-world, in-car performance of this amplifier to any other amplifier on the market, of any type, at any price.
It can also be deployed on its own as a very capable 3-channel system amplifier with 150 W x 2 to the satellites and 300 W x 1 to a subwoofer system.

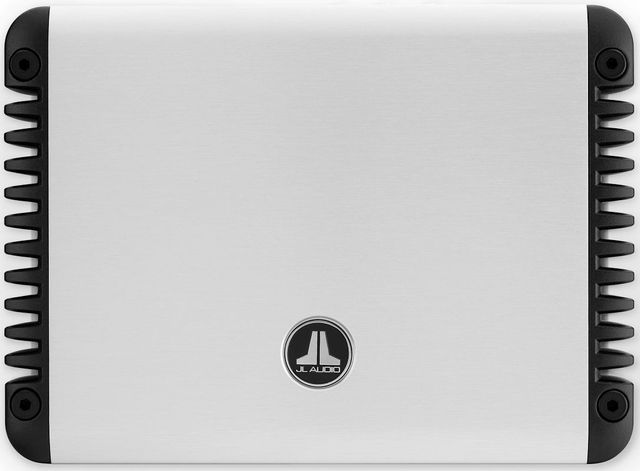

This amplifier features a brushed aluminum finish with black powder-coated cast alloy heat sinks and bottom panel. A black powder-coated, gasketed cover is also provided to protect the controls.
Frequency Response: 6 Hz – 30 kHz (+0, -1dB)
THD+N @ Rated Power: <0.03% @ 4 O per Ch.
Min.Copper Power / Ground Wire Gauge: 4 AWG wire
General Specs
| Depth (in.) |
8.29 |
| Width (in.) |
10.74 |
| Height (in.) |
1.93 |
| Preamp Outputs |
1 |
| Amplifier Class |
Class D |
| Amplifier Output (Watts) |
600 |
| Bluetooth Capable |
No |
| Amplifier Channels |
4 |
| Impedance |
1.5 – 4.0 Ohms |
| Manufacturer Warranty |
2 Year |
| RMS Power Handling (Watts) |
300 |
| Water Resistant |
No |
| Digital Input |
No |
| Shallow Mount |
No |
| Speaker Level Input |
No |
| Number Of Outputs |
4 |
| Number Of Inputs |
2 |

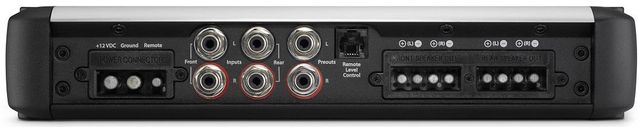

Connections
| Analog Audio(RCA) Input: |
2 |
