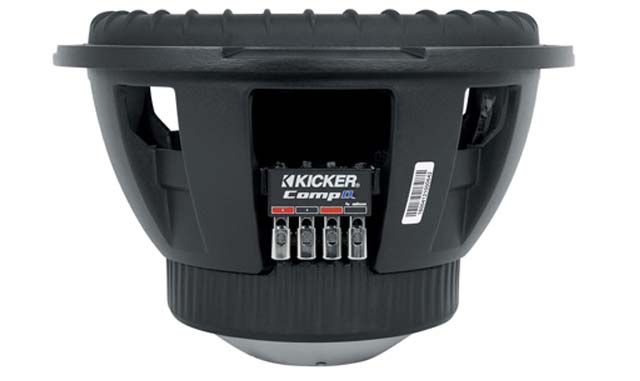

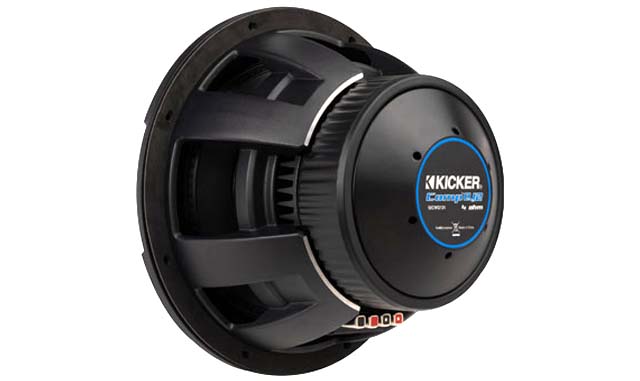

The 12″ CompQ 4-Ohm
The CompQ 12-Inch Subwoofer is the best sound quality round driver we’ve ever made, with nearly identical construction and performance as our L7 square subs.
A cast aluminum frame provides an extremely stable, vibration-free base, so every note gets from the cone to your ears as pure as the day it was recorded.
The CompQ 12-Inch Subwoofer works best with a sealed or ported enclosure with 1000 watts of recommended power.
| Thiele/Small Parameters |
| 51CWQ124 T/S Parameters |
| Product Dimension Sheet |
| 51CWQ12 Dimensions |
| Woofer (in, mm) |
| 12, 30 |
| Impedance (Ohms) |
| 4 DVC |
| Recommended Amp Power (watts RMS) |
| 500-1000 |
| Frequency Response (Hz) |
| 20-100 |
| Sensitivity (1W, 1m) |
| 85.4 |
| Xmax (mm) |
| 23 |
| Mounting Depth (in, mm) |
| 7-1/8, 18.1 |
| Mounting Diameter (in, mm) |
| 11-1/16, 28.1 |
|
|
| Sealed Enclosure Volume Min (cu. ft., L) |
| 0.88, 24.9 |
|
|
| Box Volume [ft³, L] |
| 0.88, 24.9
|
| Panel A [in, cm] |
| 13.5×13.5, 34.3×34.3 |
| Panel B [in, cm] |
| 13.5×10.5, 34.3×26.7 |
| Panel C [in, cm] |
| 12×10.5, 30.5×26.7 |
| Sealed Enclosure Volume Max (cu. ft., L) |
| 2.0, 56.6 |
| Vented Enclosure Volume Min (cu. ft., L) |
| 1.75, 49.6 |
| Vented Enclosure Volume Max (cu. ft., L) |
| 3.25, 92 |
