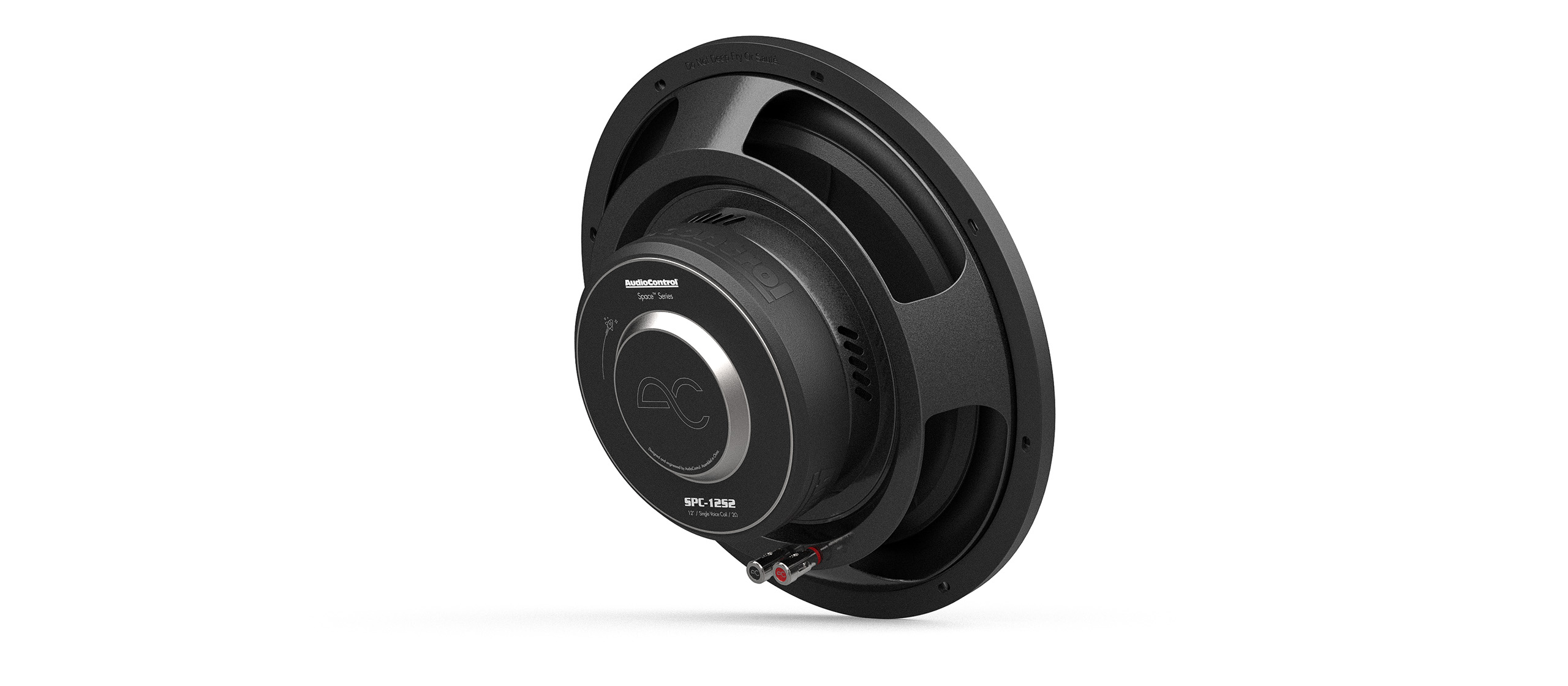

AudioControl Space Series 12-Inch Single 2-Ohm Low Profile Subwoofer

Description

AudioControl has been helping people make good sound great in their cars for over 45 years, and the Space Series Subwoofers are no exception. The fiber matrix injection molded polypropylene cone ensures that every note is reproduced to perfection, so you can feel the bass hit. The 3-layer high temp voice coil former means they can handle even the most intense bass without breaking a sweat. And don’t worry about distortion ruining your jams – these subwoofers feature an optimal thermal efficiency design to ensure that your bass stays clean and clear. Not only do these subwoofers sound amazing, they’re also built tough. With their weather-resistant design and removable grille you can enjoy your music even if your vehicle likes to play off-road.

FEATURES

Low-Profile Shallow Mount Subwoofer
Fiber Matrix Injection Molded Polypropylene Cone
Weather-Resistant Design
3-Layer High Temp Voice Coil Former
Optimal Thermal Efficiency
Wrap-Sealed Rubber Gasket to Protect Enclosure Interior
Removable Subwoofer Grille Included

PAIRINGS

Our Sonic Sommeliers Recommend the Following:

A single Space Series 2 ohm subwoofer pairs splendidly with the ACM-1.300 or ACX-300.1 for the conservative to moderate listener.
For more lusty lows, seek out the ACX-600.1.

Planning to enjoy the phenomenal performance from one of our LC-5.1300 or D-5.1300 ampliﬁers? The extraordinary power delivered from the output of channel 5 is a match made in heaven. Bon appétit!

For system designs utilizing two Space Series 2 ohm subwoofers, we recommend the LC-1.1500… Impeccable!

Seeking a bountiful bouquet of bass? Planning to include three or more Space Series subwoofers in your system? Consult an expert at your favorite authorized AudioControl dealer, or visit audiocontrol.com for more system conﬁgurations that deliver a plethora of power and precision.

DOWNLOADS

Additional information

Brand	AudioControl
Dimensions	Overall Dimensions: 12.37 in/316 mm Cut Out Diameter: 11.10 in/282 mm Mounting Depth: 3.94 in/100 mm Mounting Height (w/o Grille): 0.71 in / 18mm Mounting Height (w/ Grille): 1.42 in/36mm
Small Parameters	Nominal Impedance (Z) 2 ohms DC Resistance (Re) ]] 1.8 ohms Resonance Frequency (Fs) 27.8430 Hz Piston Area (Sd) 0.0511 m2 Force Factor (BL) 10.3379 T.m Mechanical Q Factor (Qms) 4.0762 Electrical Q Factor (Qes) 0.4073 Total Q Factor (Qts) 0.4216 Sensitivity 1W/M (SPL) 87.3655 Mechanical Comp (Cms) 0.2047 mm/N Moving Mass (Mms) 159.6086 g Linear Excursion (Xmax) . 9 mm Volume Acoustic Comp (Vas) 74.5578 Ltr/2.632984 cu ft Reference Efficiency (NO.) 0.33% RMS Power (Pe) 400 Watts Frequency Response 20-250 Hz Voice Coil Diameter 2.5 in/63.5 mm Displacement 0.0619 cu ft/1.752 Ltr
Ported Enclosure	External Dimensions: 24.00″ W × 14.50″H × 12.00″D Net Internal Volume: 1.40 ft3 Total Internal Volume: 1.75 ft3 Gross External Volume: 2.38 ft3 Material Thickness: 0.75″ Tuning Frequency: 40 Hz Port Area” 22.75 inch2 Port Inlet: 1.75″W× 13″H Port Length: 22.25″ F3 (Hz): 34
Sealed Enclosure	External Dimensions: 26″ W × 14.50″H × 5.00″D Net Internal Volume: 0.60 ft3 Total Internal Volume: 0.65 ft3 Gross External Volume: 1.09 ft3 Material Thickness: 0.75″ F3 (Hz): 60 Qtc: 0.703 *Enclosure size recommendations do not include driver and/or port displacement
What's in the Box	SPC-10S2, Manual, Warranty
