Audio Express
At the heart of this ultra-sleek and compact power plant is JL Audio’s exclusive NexD™ Class D technology, permitting high power output with exceptional efficiency and low distortion.
Color | Black |
---|---|
Depth (in.) | 6.96 |
Width (in.) | 18.05 |
Height (in.) | 2.13 |
Preamp Outputs | 1 |
Amplifier Class | Class D |
Amplifier Output (Watts) | 1500 |
Bluetooth Capable | No |
Amplifier Channels | Mono Block |
Impedance | 1 - 4 Ohms |
Manufacturer Warranty | 2 Year |
RMS Power Handling (Watts) | 1500 |
Water Resistant | No |
Digital Input | No |
Shallow Mount | No |
Speaker Level Input | No |
Number Of Outputs | 2 |
Minimum Impedance Unbridged | 1 Ohm |
Number Of Inputs | 1 |
You Might Also Need
Protection Plans
AllState Protection Plan 2 Year Parts & Labor Warranty $500 - $799.99
AllState Protection Plan 4 Year Parts & Labor Warranty $500 - $799.99
Engineered for high-power, subwoofer applications, the RD1500/1 monoblock amplifier is built to deliver staggering amounts of world-class bass output. Equipped with a special low impedance circuit, the RD1500/1 is capable of generating a whopping 1500 watts of output power, at either 1 or 2 ohms (14.4V, 1% THD). At the heart of this ultra-sleek and compact power plant is JL Audio’s exclusive NexD™ Class D technology, permitting high power output with exceptional efficiency and low distortion.

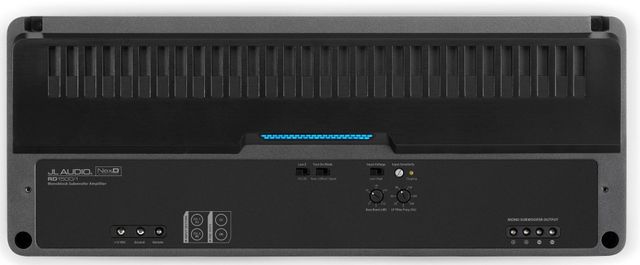

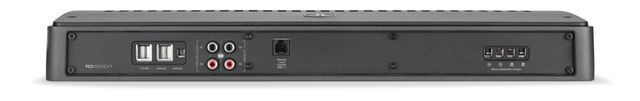

For your convenience, all of the RD1500/1’s controls are located on top of the amplifier, beneath a protective cover, with all connections found along one side of its chassis. Signal processing features include a 12 dB / octave low-pass filter, with continuously variable frequency selection from 50-500 Hz, and a variable bass boost EQ. Dual-range, differential-balance inputs are also onboard, capable of accepting most input voltage levels. Automatic turn-on capability (via signal sensing or DC-offset sensing) is standard, along with a set of preamp outputs so you can easily pass signals to another amplifier.
The RD1500/1 is also equipped with an onboard LED-clipping indicator. This all-new, innovative feature lets you easily set your amplifier’s input sensitivity setting, quickly and accurately, with no special equipment needed. The RD1500/1 features a durable, black powder-coated finish and a top-mounted, dual-color LED light strip that reports the overall status and condition. Control of the subwoofer level from the driver’s seat is easily accomplished with the addition of the optional RBC-1 remote level control (sold separately).
Frequency Response: 7 Hz - 500 Hz (+0, -1dB)
Fuse Rating: 150A (AFS or AGU)
Min.Copper Power / Ground Wire Gauge: 2 AWG wire
Color | Black |
Depth (in.) | 6.96 |
Width (in.) | 18.05 |
Height (in.) | 2.13 |
Preamp Outputs | 1 |
Amplifier Class | Class D |
Amplifier Output (Watts) | 1500 |
Bluetooth Capable | No |
Amplifier Channels | Mono Block |
Impedance | 1 - 4 Ohms |
Manufacturer Warranty | 2 Year |
RMS Power Handling (Watts) | 1500 |
Water Resistant | No |
Digital Input | No |
Shallow Mount | No |
Speaker Level Input | No |
Number Of Outputs | 2 |
Minimum Impedance Unbridged | 1 Ohm |
Number Of Inputs | 1 |
