Description
SMARTPHONE
INTEGRATION
JVC multimedia receivers interface your smartphone with your car to enrich your driving experience. Enjoy your favorite apps and view content on a big screen, in comfort and safety.
Apple CarPlay® – Connect via USB
A smarter, safer and more fun way to use your iPhone in the car. Apple CarPlay gives iPhone users an intuitive way to make calls, use Maps, and listen to music with just a word or a touch.
Some features, applications, and services are not available in all areas.
For details, see: www.apple.com/ios/feature-availability//#applecarplay-applecarplay
Android Auto™ – Connect via USB
Android Auto was designed with safety in mind. With larger touch targets, a split-screen interface, and easy-to-use voice actions, it’s designed to minimize distraction so you can stay focused on the road.
*Compatible Android phone and compatible active data plan required.
*Some features and devices may not be available in all countries. Subject to availability.
13-Band Equalizer
Use the 13-Band Equalizer to manually adjust the sound to your taste.
Bluetooth Voice Recognition
Improved Sound Quality with HFP 1.8 Wideband Speech
Improved sound quality thanks to HD Voice contributes to a higher level of voice recognition accuracy.
Streaming Music
Listen to popular music applications and music stored on your device with basic audio controls.
6.8″ WSVGA LCD Display
The WSVGA display reproduces approximately 1.6 times higher resolution than the conventional WVGA display. You can enjoy finely detailed expression of color gradients and lifelike visuals in dramas and movies, enhancing your viewing experience.
Capacitive Touchscreen
The Capacitive touch screen provides high clarity and uses a superior touch control, requiring lighter contact with greater accuracy.
High Current 2.1A Charging
Rapidly charge your smartphone using the USB port, with up to a maximum of 2.1A.
*Compatibility depends on the smartphone.

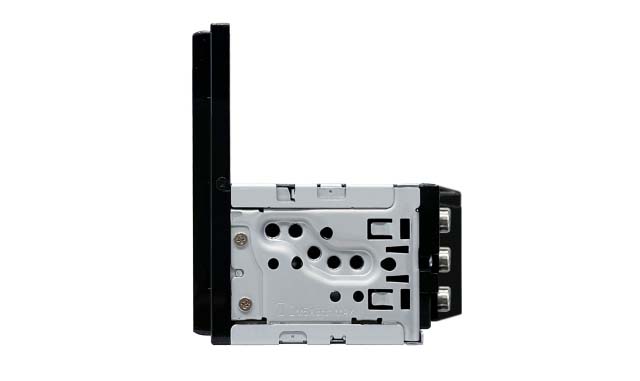

Short Chassis
Despite a double-DIN display, our unit stands out with its remarkably compact rear chassis, ensuring hassle-free installation and optimal cable management.
Steering Wheel Remote Control Ready
Factory steering wheel control functions can be retained with a third-party adapter (sold separately).
Remote Control (Optional)
Remote control (RM-RK259) is optionally available.
-
KW-M590BT
Monitor
- Screen Size
- 6.8″W SVGA
- Touch Panel
- Capacitive
- Customizable GUI
- Yes
- Key Illumination Color
- Blue
- Dimmer
- Yes
- Multilingual Display
- Yes[4]
Media Playback
- MP3 Compatible with Tag
- USB
- WMA Compatible with Tag
- USB
- WAV Compatible with Tag
- USB
- AAC Compatible with Tag
- USB
- FLAC Compatible with Tag
- USB
- H.264 Compatible
- USB
- WMV Compatible
- USB
- MPEG 1/2 Compatible
- USB
- MPEG 4 Compatible
- USB
- MKV Compatible
- USB
Bluetooth Control
- Built-in Bluetooth[1]
- Yes (Hands-Free MIC Built-in)
- Hands Free Call
- Yes (HFP1.8)
- Audio Streaming & Control (A2DP, AVRCP)
- Yes
- Supported Audio Formats
- AAC / SBC
- Voice Dialing (voice recognition compatible mobile phone required)
- Yes
- Phone Book Access Profile (PBAP)
- Yes
- Auto Pairing for iPhone/Android
- Yes
Android Control
- Android Auto[2]
- Yes (via USB)
- Mirroring for Android
- Yes (via USB) *Need mirroring App
- Android Music Playback
- Yes (via Bluetooth®)
iPod/iPhone Control
- CarPlay[3]
- Yes (via USB)
- Mirroring for iPhone
- Yes (via USB) *Need mirroring App
- iPhone Music Playback
- Yes (via USB or Bluetooth®)

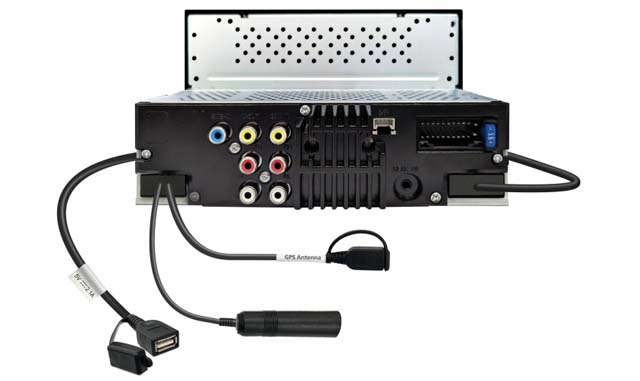

USB
- USB Port
- x 1 (High Speed)
- Position
- Rear
- USB Power Supply
- Yes (2.1A High Current Charging)
Radio Tuner
- Radio Broadcast Data System (RBDS)
- Yes
- Preset Stations
- 36(FM:24ch, AM:12ch)
- Auto Memory Entry
- Yes
- FM
- Frequency Range
- 87.9 – 107.9MHz
- AM
- Frequency Range
- 530-1,700kHz
Audio
- Maximum Power Output (Front & Rear)
- 50Wx4
- Full Bandwidth Power (Front & Rear)
- 22W x 4
- EQ
- Yes (13-Band Graphic EQ)
- Preset EQ
- Yes (7Preset + 3user)
- Bass Boost
- Yes
- High-Pass Filter/Low-Pass Filter
- Yes/Yes
- Speaker Size Control
- Yes
Inputs and Outputs
- Video Out
- x 1 (V:RCA)
- Rear view camera Input
- Yes
- Line Output Terminals
- 2Preouts + Sub WF (Mono)
- Pre-output Level/Impedance
- 2.5V / 10k ohms
- Subwoofer Output with Level/Frequency Control
- Yes (Normal / Reverse)
General
- Back Up Memory
- Yes
- Short Chassis
- Yes
- Wireless Remote Control
- Optional (RM-RK259 required)
- Steering Remote Control Ready
- Yes
- Dimensions (W x H x D)
- Installation Size
- 7-1/16″ x 3-15/16″ x 3-3/8″ (178 x 100 x 86 mm)
- Weight
- 2.41 lbs. (1.07kg) Including Trim plate
- Unit weight in individual package
- 1.62kg
