Description
From the Ground Up

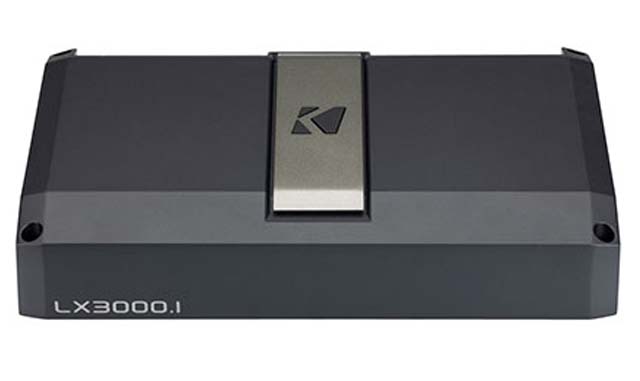

The LX-Series represents KICKER’s high-power premium amplifier line designed in-house from the ground up. Precision control, next-level flexibility, designed for performance, built to last.
- Monitor and adjust with the included LXRC Dash Remote
- Class-D design for lower current draw, longer playing times, and lower operating temperatures
- Gain-match LEDs show you perfect gain setting
- KickEQ+™ parametric bass boost 0–6dB
- Customize the appearance with reversible center panel and choice of 11 RGB LED accent colors
- Equipped with FIT+™ technology, accepting low- and high-level signals up to 40V, with differential inputs designed to eliminate unwanted noise for crystal-clear sound
- LX features choice of turn-on modes and comprehensive protections for thermal, circuit, and voltage stability, ensuring reliable performance
Comes with the LX REMOTE CONTROL (LXRC)
- Dynamic fingertip dash remote of bass level adjustment
- Features SHOCwave2.0™ (Sub-Harmonic Octave Creation), KICKER’s 2nd-gen digital bass restoration algorithm that recovers lost, low-bass frequencies vital to your music selections
- Displays battery voltage in fuel-gauge-style readout
- Control of its RGB LED brightness
- Output clipping indicator to prevent distortion and protect your system
- Cable Length – 19.75 feet (6m) RJ45 cable
| LX 3000.1 white paper |
| 51LX30001 Whitepaper PDF |
| RMS Power [Watts Channel] @ 14.4V |
1Ω mono: 3000W
2Ω mono: 2000W
4Ω mono: 1100W |
| Dynamic Power [Watts] |
| 3800 |
| Frequency Response [Hz] |
| 10–160, +0/–1dB |
Signal-to-Noise Ratio
(a-weighted, re: rated power) |
| >95dB |
Signal-to-Noise Ratio
(ref: 1W output) |
| >75dB |
| Dimensions [in, cm] |
Height: 2-3/8 (6 cm) Width: 8-7/16 (21.4 cm)
Length: 12-5/8 (32 cm) |
| Input Sensitivity |
High level 1V–40V
Low level 125mV–5V |
| Variable Electronic Crossover |
LP; 24dB/octave Linkwitz-Riley,
variable 40–160Hz |
| Variable Subsonic Filter |
24dB/octave Linkwitz-Riley,
variable hi-pass @ 10–80Hz |
| KickEQ+™ Parametric Bass Boost |
0–6dB, variable center 20–80Hz,
variable bandwidth 1–5 |
